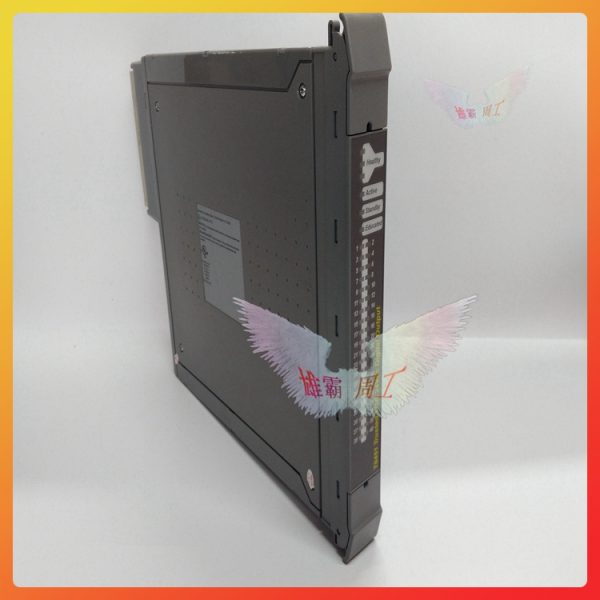

T8451C ICS TRIPLEX Digital output interface card T8451
T8451C ICS TRIPLEX Digital output interface card T8451
Manufacturer:ICS Triplex
Product number:T8451
Product type:TrustedTM module
System power supply voltage range:20 to 32v DC
Circuit type:fault-tolerant,fully triple selectable line monitoring
Output quantity:40 channels
Independent power pack:8 outputs with 5 each
Working output/on-site voltage range:18 to 32V dc
output voltage
Measurement range:0 to 32V DC
Maximum withstand:-1 to 40V DC
Rated output current(continuous):2A per channel of each power pack is limited to 8A
Maximum capacitance:pre release 3.5:30-55uF
Flashing/pulse current load:It is recommended to use version 3.5
Minimum open state load current:50mA
Output closed state resistance(effective leakage):33O
Output open state resistance:0.6O
Output short circuit protection:electronic(locked)
Inter channel crosstalk:%3E-40dB
Version 3.5:At least 2800uF on 2A
Power consumption
On site power supply(1A per channel):24W
System power supply(24V):24W
Public isolation on site
Continuous operation:250 V DC
Maximum withstand voltage:2.5 kV DC
Output on/off delay:0.5 milliseconds
Sample update time:0.5 milliseconds
The progress of the matter
Event resolution:1 millisecond
Self check interval:2 minutes
Intrinsic safety:external barrier
Output short circuit protection:automatic
Working temperature:-5°C to 60°C(23°F to 140°F)
Non operating temperature:-25°C to 70°C(-13°F to 158°F)
Temperature change:0.5 degrees Celsius per minute
Working humidity:5-95%RH non condensing
Dimensions(length x width x height):30cm x 3cm x 24.1cm
Weight:1.13 kilograms
Transportation weight:3 kilograms
ICS TRIPLEX T8451C is a digital input/output module used in industrial automation and control applications.It aims to provide reliable and flexible digital signal processing capabilities for various control system applications.
Here are some key details about the ICS TRIPLEX T8451C digital module:
Type:Digital Input/Output Module
Function:Digital signal processing for control system applications
Input/output channel:16
Signal type:Digital(on/off)
Communication protocol:Ethernet,Modbus TCP/IP
Certification:SIL 3,TÅV certification according to IEC 61508
The ICS TRIPLEX T8451C digital module is designed for applications that require high-speed and reliable signal processing,such as the oil and gas,chemical processing,and power generation industries.It is designed specifically for operation in harsh environments and can withstand extreme temperatures,impacts,and vibrations.
This module can be programmed using multiple programming languages,including ladder diagrams and function block diagrams.It also supports the integration of third-party software applications and tools,making it highly customizable and adaptable to different automation and control requirements.
In summary,the ICS TRIPLEX T8451C digital module is an important component of industrial automation and control systems,providing reliable and flexible digital signal processing capabilities for various control system applications.It is designed for high reliability and safety,and is certified to ensure compliance with strict industry standards.
