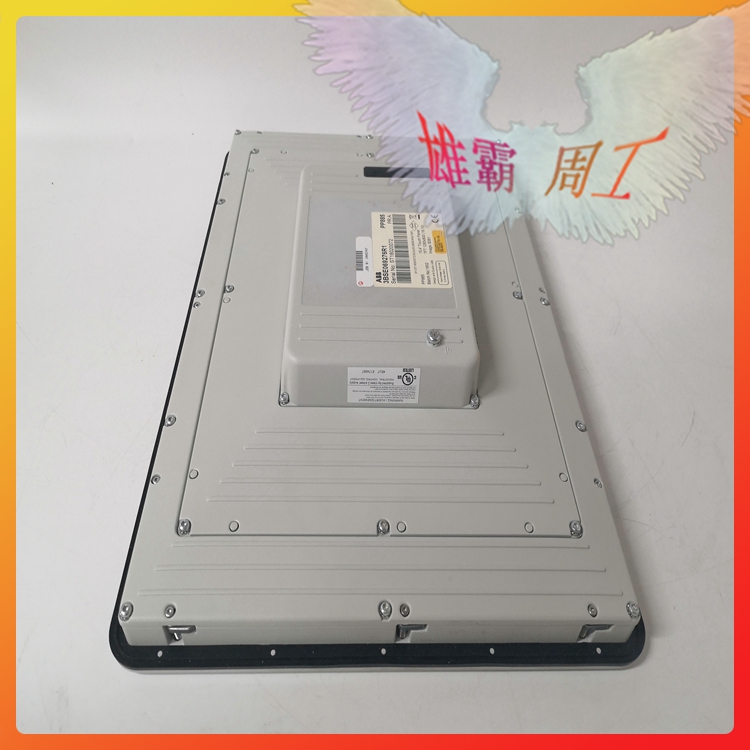

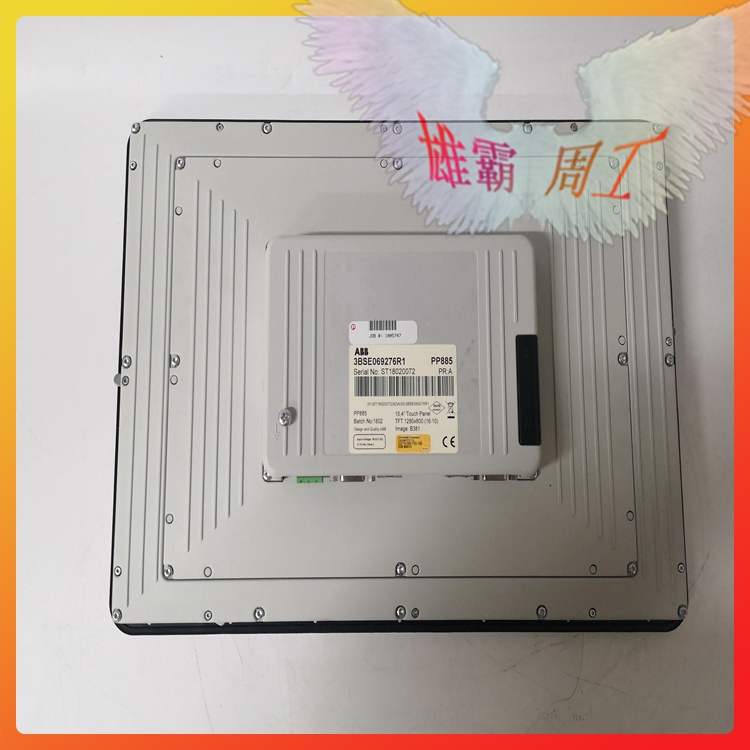

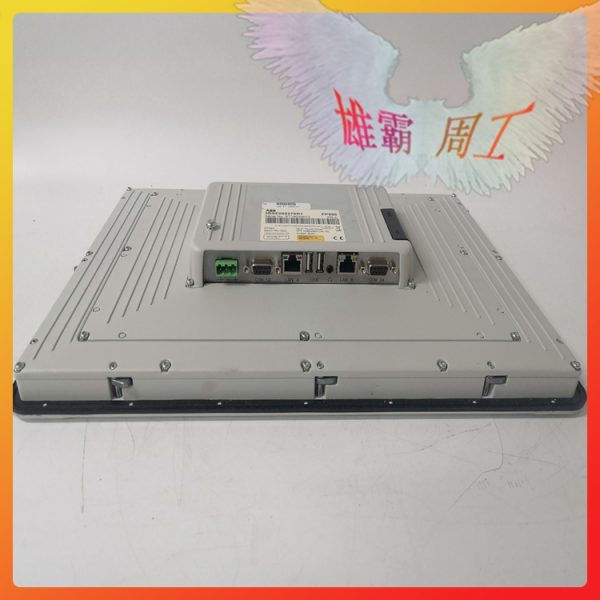

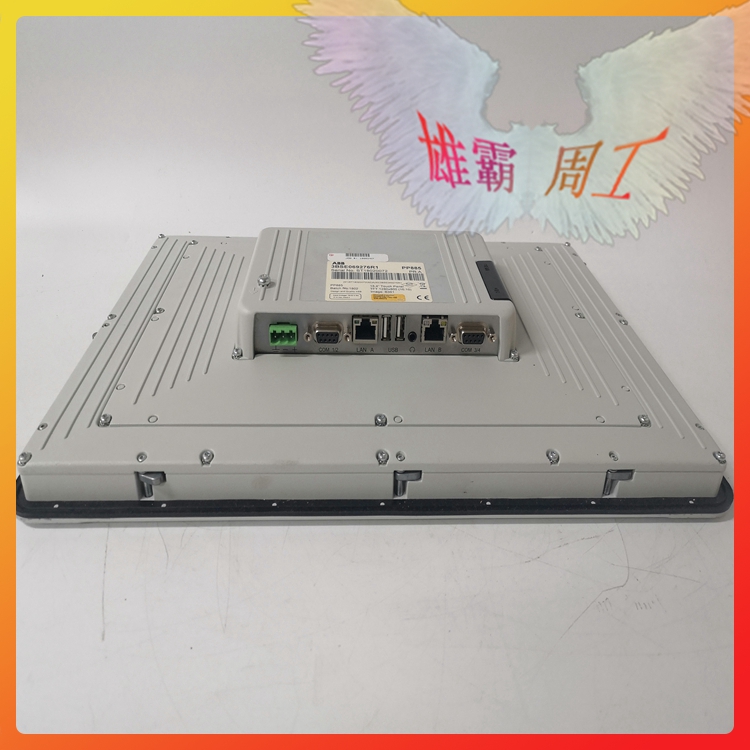

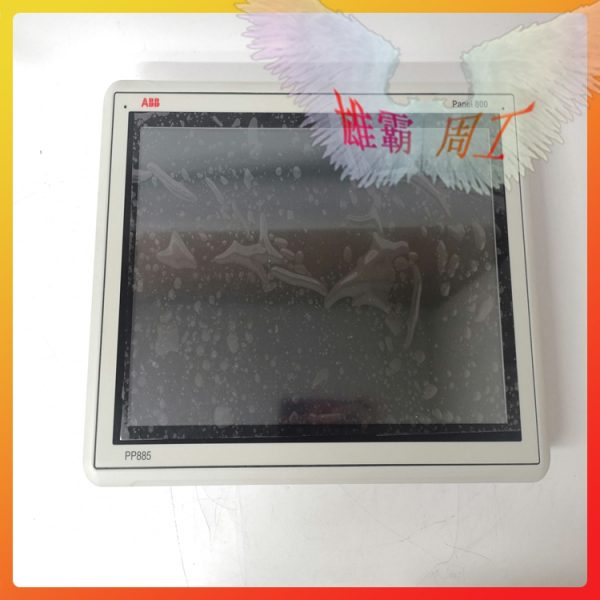

PP885 ABB interface 3BSE069276R1 Touch film controller

PP885 ABB interface 3BSE069276R1 Touch film controller

Article number:PP885 ABB interface 3BSE069276R1 Touch film controller
Communication protocol ABB’s DriveBus
Master or slave Master
Transmission speed 16 Mbit/s
Line redundancy No
Module redundancy No
Hot Swap Yes
Used together with HI Controller
Contact : Zoe
WhatsApp: +86-15359298206
Phone: +86-15359298206 （Wechat）
E-mail: 2851759107@qq.com
QQ : 2851759107

Touch panel

Touch panel is a new product in the market. The market share of touch panel in NB is still not high, and it is estimated that it will be less than 5% from 2009 to 2010.



Development status

However, based on the annual shipment volume of about 130 million sets of NB, the monthly demand for touch panels is about 500000, which has far exceeded the total capacity of capacitive touch panels available in the world. As for the manufacturers who have started mass production of capacitive touch panels at this stage, including Qunzhuang, Shenghua and Chenhong, they mainly adopt production lines below 2.5 generations, which are more suitable for the supply of small size capacitive touch panels such as mobile phones. With the introduction of touch panel into notebook computer (NB) applications, the demand will increase significantly in the future. In particular, the capacitive technology with multi-point touch and operation interface that is closest to the intuitive experience of consumers will become a competitive place for all businesses. Following the announcement of mass innovation that it will invest in the production line of large-scale touch panels, Dahong, the color filter (CF) factory of Youda, decided to turn the 4.5 generation CF production line into touch panels. It is expected that the production capacity will be successively opened in 2010, making the touch panels move towards the production line of more than 4.5 generations.



market prospect

The market demand for touch panel is concentrated. As various digital consumer electronics products have been introduced into touch applications, the global touch panel market has grown rapidly. The global touch module shipments will grow from 1.23 billion in 2011 to 1.79 billion in 2014, with a compound annual growth rate of 13.5%.



Introduction and principle

The touch panel is coated with a layer of tin antimony oxide film (ATO Layer) and a protective film (Hard Coat Layer) on the surface of transparent glass, and the shielded layer between the touch panel and the LCD monitor is required to prevent electronic signal interference. The touch panel is the direct embodiment of touch technology, which is used to sense contact signals and analyze and identify them.

Introduction to touch panel technology Touch panel structure includes sensor, controller and software. The sensor, namely the touch panel part, is mainly used to receive the information input through contact; The function of the controller is to analyze and calculate the position of the contact point, and convert the analog signal into digital signal, so that the information equipment can accept the input signal; The software part connects the communication protocol between the information processing equipment and the controller, so that the information processing equipment can receive and recognize the signal input by the controller for subsequent processing actions.

The touch panel can be divided into four types according to the induction technology: resistance type, capacitance type, optical type and acoustic type. The following describes the principles and characteristics of various technologies.
