IS215UCVGM06A VMIVME-7666-111000 GE Mark V LAN card

IS215UCVGM06A VMIVME-7666-111000 GE Mark V LAN card

Product characteristics imported or not Imported or not

Produced in the United States and customized or not

Brand :GE      model :IS215UCVGM06A

Working voltage standard V Output frequency standard kHz

Product Description
IS215UCVGM06A is a PCB component of the Mark VI system.MKVI is a gas/steam turbine processing pathway released by General Electric and is part of its long operating Speedtronic production line,which began in the 1960s and continued production until the end of this century.
IS215UCVGM06A is a UCV controller.There are several versions of UCV controllers;IS215UCVGM06A is a single slot single board computer used to operate turbine application codes.The PCB is installed on the control module.It communicates with the I/O board through the VME bus.IS215UCVGM06A operates on the QNX operating system,which is a real-time multitasking operating system.

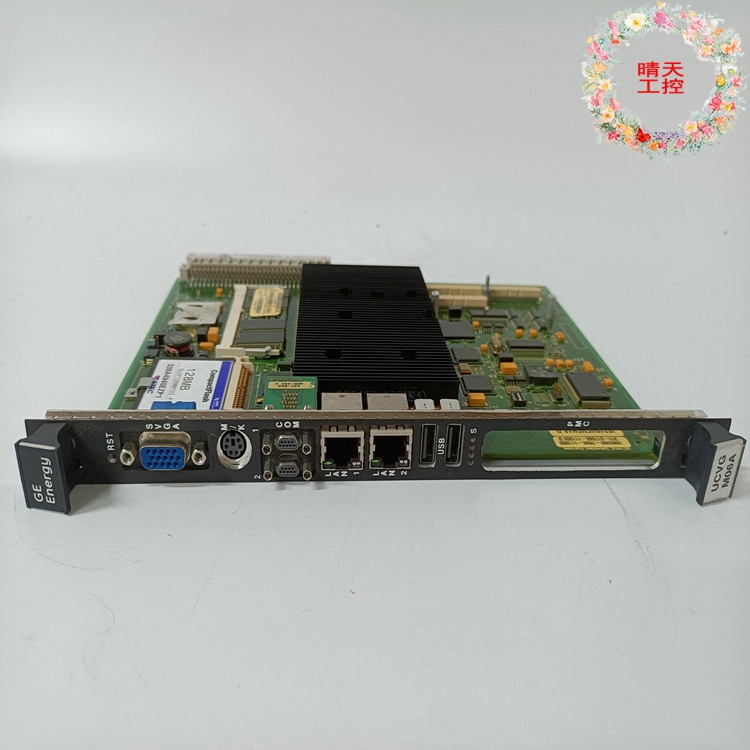

IS215UCVGM06A has a front panel with many connectors,including display and keyboard/mouse ports,Ethernet/LAN ports,and USB ports.The front panel also has a reset switch,four LED components directly installed on the panel,and LEDs connected to Ethernet ports.There are PMC expansion slots on the front panel.

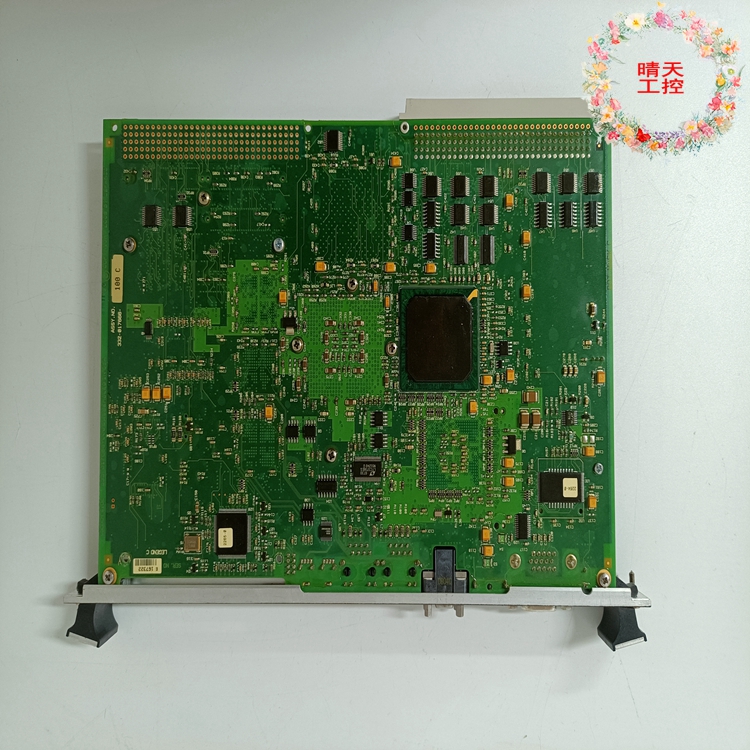

IS215UCVGM06A has multiple switch components on its surface.There is a type 1 lithium battery in between.This battery can only be replaced with an equivalent type of battery.Other components include backplane connectors and auxiliary boards,inductance coils,resistors,diodes,capacitors,and connectors for various integrated circuits.IS215UCVGM06A uses an Intel ultra-low voltage Celeron processor(650 MHz).
