ICS TRIPLEX T8461 is an industrial control card module.The following is a general introduction to this module:
Function:The GE ICS TRIPLEX T8461 industrial control card module is used to control and monitor various operations and functions in industrial automation systems.It is a key component of the system,responsible for receiving input signals,executing logic control,generating output signals,and other tasks.
High reliability:This module adopts high-quality manufacturing and design standards,with reliability and stability.It has undergone rigorous testing and validation to ensure reliable operation under various working conditions.
Multifunctionality:The GE ICS TRIPLEX T8461 module has multiple functions and features that can be used to control and monitor different types of equipment and systems.It can support multiple input and output signals,including analog and digital quantities.
Flexibility:This module has flexible programming and configuration options that can be customized and adjusted according to specific application requirements.It supports multiple communication interfaces and protocols,facilitating data exchange and communication with other devices.
Easy to use:The GE ICS TRIPLEX T8461 module has a user-friendly interface and operation mode,simplifying the configuration,debugging,and monitoring process.It provides detailed status and diagnostic information to assist users in troubleshooting and maintenance.

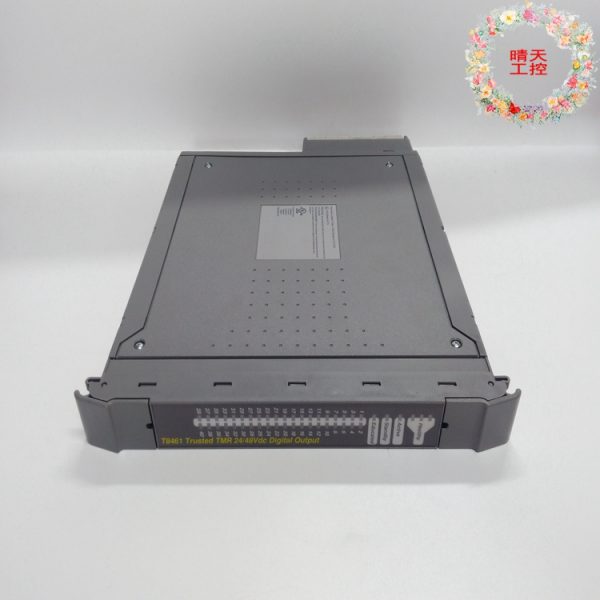

T8461 Control Pulse Card Module
Manufacturer:ICS Triplex
Product number:T8461
Product type:Control pulse card module
System power supply voltage range:20 to 32v DC
Circuit type:fault-tolerant,fully triple selectable line monitoring
Output quantity:40 channels
Independent power pack:8 outputs with 5 each
Working output/on-site voltage range:18 to 32V dc
output voltage
Measurement range:0 to 32V DC
Maximum withstand:-1 to 40V DC
Rated output current(continuous):2A per channel of each power pack is limited to 8A
Maximum capacitance:pre release 3.5:30-55uF
Flashing/pulse current load:It is recommended to use version 3.5
Minimum open state load current:50mA
Output closed state resistance(effective leakage):33O
Output open state resistance:0.6O
Output short circuit protection:electronic(locked)
Inter channel crosstalk:%3E-40dB
Version 3.5:At least 2800uF on 2A
Power consumption
On site power supply(1A per channel):24W
System power supply(24V):24W
Public isolation on site
Continuous operation:250 V DC
Maximum withstand voltage:2.5 kV DC
Output on/off delay:0.5 milliseconds
Sample update time:0.5 milliseconds
The progress of the matter
Event resolution:1 millisecond
Self check interval:2 minutes
Intrinsic safety:external barrier
Output short circuit protection:automatic
Working temperature:-5°C to 60°C(23°F to 140°F)
Non operating temperature:-25°C to 70°C(-13°F to 158°F)
Temperature change:0.5 degrees Celsius per minute
Working humidity:5-95%RH non condensing
Dimensions(length x width x height):30cm x 3cm x 24.1cm
Weight:1.13 kilograms
Transportation weight:3 kilograms
