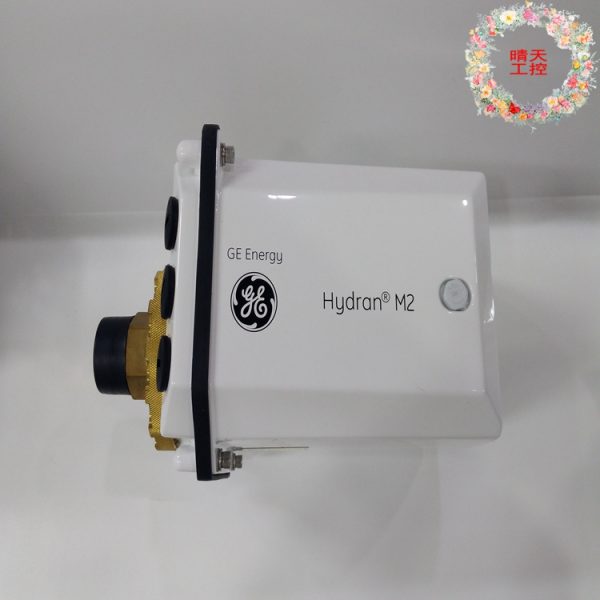

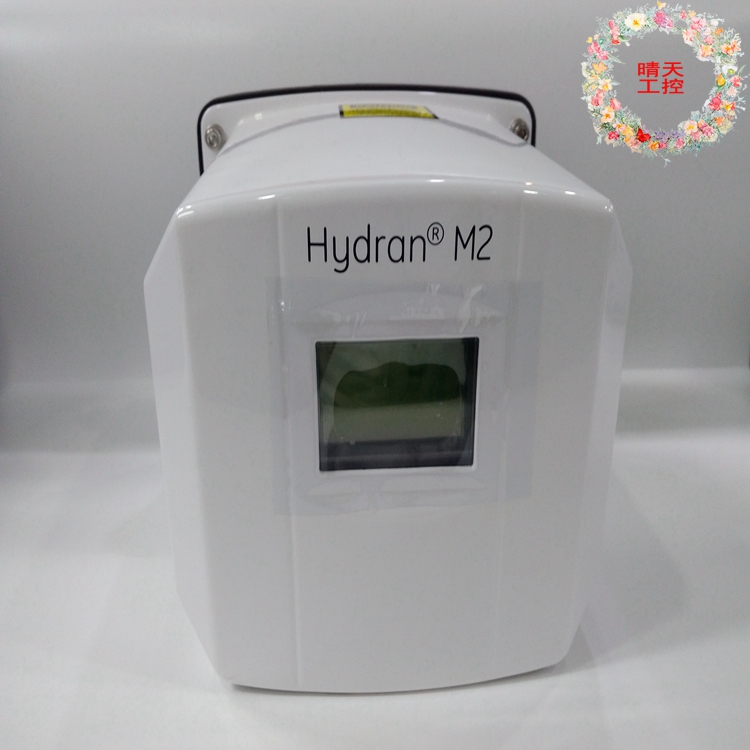

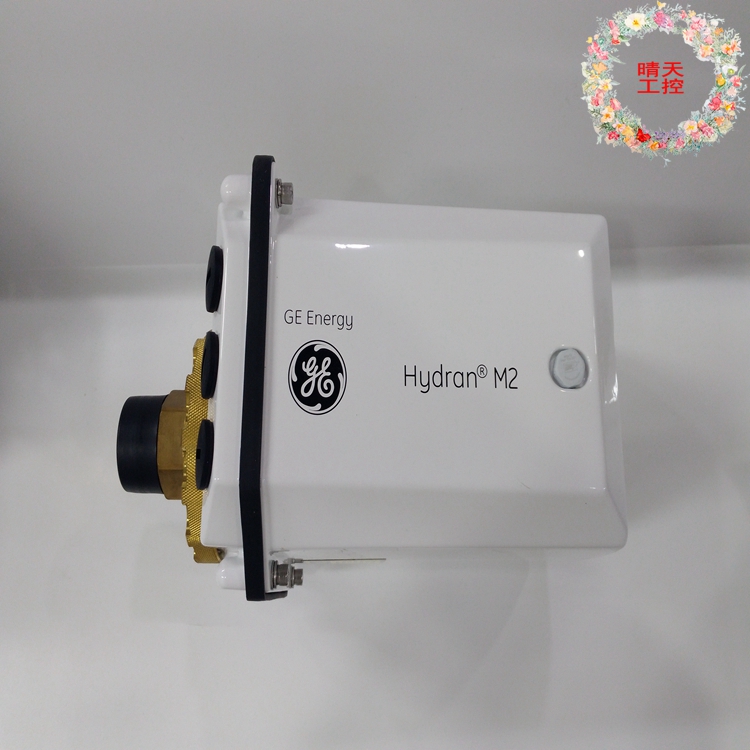

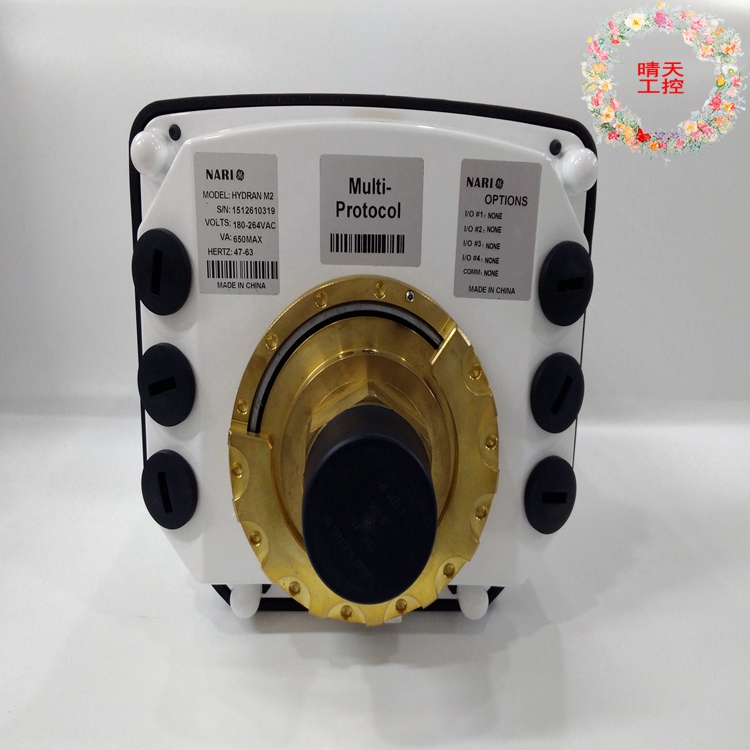

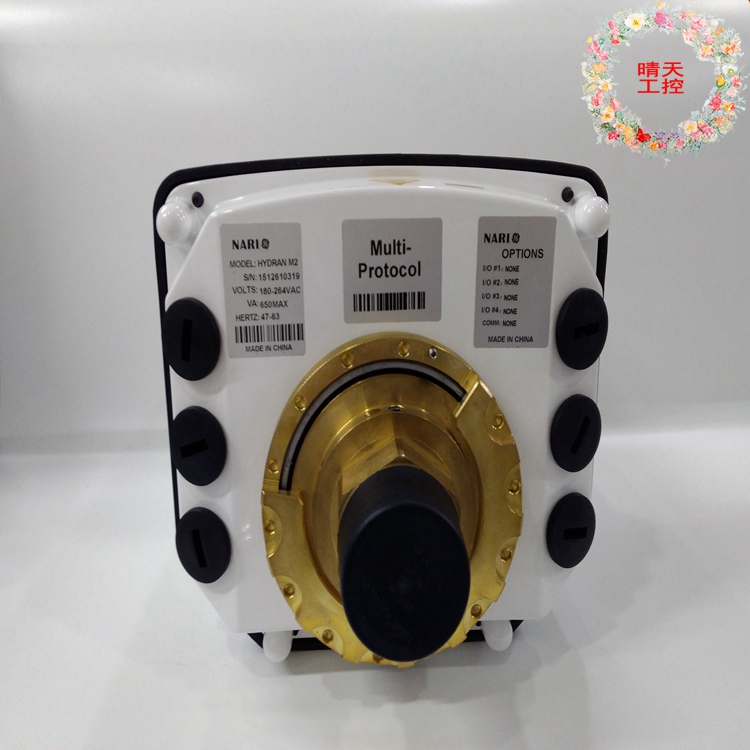

Product description

The HYDRAN M2 module uses advanced sensor technology to accurately measure and analyze dissolved gases such as hydrogen, oxygen, carbon monoxide and carbon dioxide in transformer oil. By monitoring these gases, it is able to identify abnormal levels and trends, indicating potential problems within the transformer. Product parameter

– Measurement scale: Hydrogen (H2):0-10,000 ppm; Oxygen (02):0-1000ppm; Carbon monoxide (CO):0-1000ppm; Carbon dioxide (C02):0-2000ppm- Sampling method: direct sampling from transformer oil – Communication interface :Modbus RTU, RS485

Power Supply :100-240vac,50/60hz

– Operating temperature :-20 ° C ~ +70 ° C

Product description

The HYDRAN M2 GE transformer monitoring device monitors and evaluates the operation of the transformer to ensure its safe, reliable and efficient operation.

trait

The hydrogen sensor responds 100% to hydrogen (a common faulty gas)

The composite gas sensor is 100% responsive to hydrogen and is also sensitive to carbon dioxide (superheated paper insulators).

Up to 4 input or output cards can be selected

Extensive communication methods and protocols.

Standard RS485 output. TCP/IP Copper or optical fiber Optional

Vacuum gas extraction membrane.

Built-in temperature control system.

Good system self-test and self-diagnosis.
