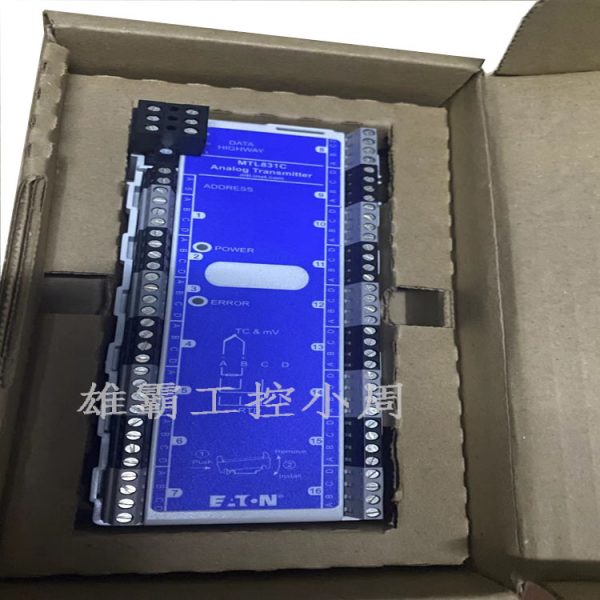

GMTL831C Analog Transmitter MTL Instrument Off the Shelf
GMTL831C Analog Transmitter MTL Instrument Off the Shelf
Expected lead time:6-8 weeks.
Manufacturer:MTL Instrument
Product No.:MTL831C
Product type:analog transmitter
The MTL831C analog transmitter can transmit multiple input signals from hazardous areas to safe areas through the data highway,which is composed of a shielded twisted pair.It is intrinsically safe and can be installed in Zone 0 hazardous areas or hazardous locations.
The MTL831C can monitor up to 16 inputs from THC or millivolt power supplies or 2,3,or 4-wire RTDs or potentiometers.According to different applications,cables and(noise)environments,a data highway is provided,which can transmit signals and power within an interval of up to 2km.Shielded twisted pair is strongly recommended.At the other end of the data highway,the MTL838C receiver translates the information sent from MTL831C.One or two MTL831Cs can be connected to a single MTL838C.
MTL838C provides*Modbus for input and status information®Serial data output indicates.When the MTL831C transmitter is installed in a hazardous area,the data highway must be maintained by the MTL5553/MTL5053 isolator/power supply installed in a safe area.
Shipping weight:2 Kg
2 GETTING STARTED
Installation of the MTL831C multiplexer transmitter is divided into three main topics.
• Mechanical Installation – how to mount the MTL831C and how it may be
fitted into an enclosure.
• Electrical Connections – the sensor and highway connections. If units are
installed in our enclosures, it details any special wiring arrangements.
• Configuration – the address is configured with a user supplied jumper wire.
The remaining configuration is either over a Modbus® link or software on a PC.
NOTE
A new user might find it helpful to set up the system, or a simple version of it, in
an indoor test area to gain familiarisation before undertaking installation on site.
3 COMPONENTS AND ACCESSORIES
Product part numbers and their descriptions are listed below.
Part Number Description
MTL831C Analog Transmitter
MTL838C Receiver
MTL5553/MTL5053 Isolator/Power Supply
A standard USB Type C cable (not supplied by Eaton) is required to configure
the MTL838C
4 MECHANICAL INSTALLATION
4.1 Location
The MTL831C can be installed in either safe or hazardous areas (including Zone 0)
depending upon the requirements of the application.
4.2 Mounting options
The unit can be mounted on T-section DIN-rail. Eaton has a range of enclosures
– ENC8, ENC8-SS, ENC83 or ENC83-SS – to provide suitable IP67 protection if the
transmitter is located in an exposed area.
4.2.1 Mounting on T-section DIN-rail
To install, tilt the MTL831C to the left and hook to the left side of the standard 35mm
DIN46277 T-section rail. Push to the right and allow the unit to rotate down to sit flat
on the DIN Rail. Allow it to spring back to the left and the right side will hook to the
DIN Rail.
To remove, push the MTL831C to the right and tilt the right side away from the DIN
Rail. While tilted, allow it to spring back to the left and remove from the DIN Rail.
1 Remove
Install
Push 2
4 INM MTL831C Rev 1
DRAFT – 21 December 2018
5 CONNECTIONS
The connection terminals are along the edges of the Analog Transmitter. These are
divided into input sensor terminals (1 to 16), the Address terminals (A, S), and the
data highway terminals (+, S, -), as shown below.
5.1 Address
Leaving these two pins (A, S) open, sets the address of the MTL831C to “1”. A
jumper on these two pins sets the address to “2”. Either is valid for a system
with only one MTL831C connected to the MTL838C. When two MTL831Cs are
connected to a single MTL838C, they must be addressed uniquely. If they are on the
same address, only one will communicate with the MTL838C. The address affects
where the data is seen in the PC Software and what is available on the RS485 ports:
ADDRESS PC Software Modbus Port A or B LLMUX Emulation
1 MTL831C #1 tab Channels 1-16 Link 1, channels 1-16
2 MTL831C #2 tab Channels 17-32 Link 2, channels 1-16
