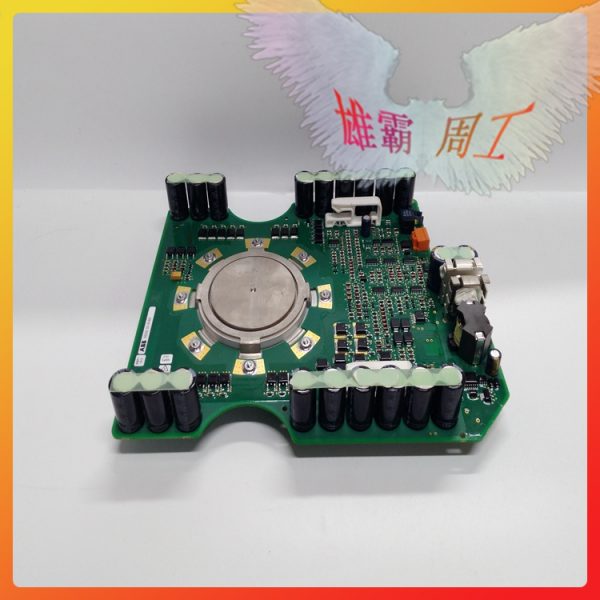

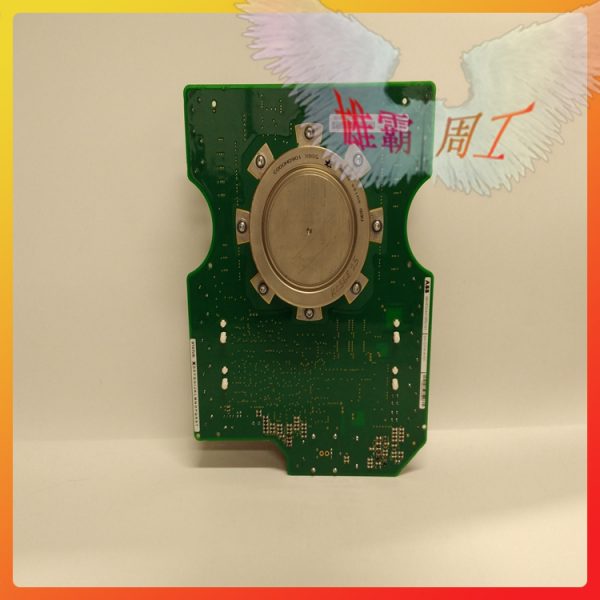

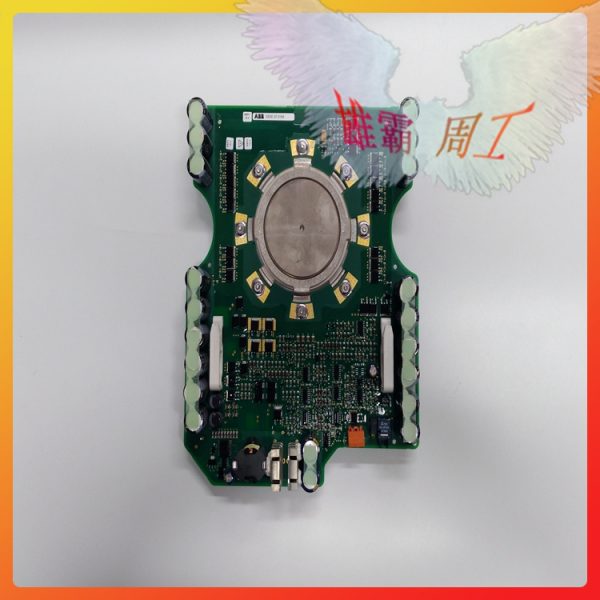

5SHX1060H0001 3BHB003230R0101 3BHL000392P0101 ABB IGCT module
5SHX1060H0001 3BHB003230R0101 3BHL000392P0101 ABB IGCT module
Article number :5SHX1060H0001 3BHB003230R0101
Communication protocol ABB’s DriveBus
Master or slave Master
Transmission speed 8 Mbit/s
Line redundancy No
Module redundancy No
Hot Swap Yes
Used together with HI Controller No
Contact : Zoe
WhatsApp: +86-15359298206
Phone: +86-15359298206 （Wechat）
E-mail: 2851759107@qq.com
QQ : 2851759107
working principle
working principle
Structural elements
Thyristor is a P1N1P2N2 four-layer three-terminal structure element with three PN junctions. When analyzing the principle, it can be regarded as composed of a PNP tube and a NPN tube. Its equivalent diagram is shown in the right figure. Bidirectional thyristor: Bidirectional thyristor is a silicon controlled rectifier device, also known as bidirectional thyristor. This device can realize contactless control of AC in the circuit and control large current with small current. It has the advantages of non-sparking, fast action, long life, high reliability and simplified circuit structure. From the appearance, the bidirectional silicon controlled rectifier is very similar to the ordinary silicon controlled rectifier. It also has three electrodes. However, in addition to one electrode G, which is still called the control electrode, the other two electrodes are usually not called the anode and cathode, but the main electrode Tl and T2. Its symbol is also different from that of ordinary silicon controlled rectifier. It is drawn by connecting two silicon controlled rectifier reversely, as shown in Figure 2. Its model is generally indicated by “3CTS” or “KS” in China; Foreign data can also be represented by “TRIAC”. The specification, model, shape and electrode pin arrangement of bidirectional silicon controlled rectifier vary according to the manufacturer, but most of its electrode pins are arranged from left to right in the order of T1, T2 and G (when observing, the electrode pins are downward, facing the side marked with characters).
Thyristor characteristics
In order to intuitively understand the working characteristics of thyristor, let’s look at this teaching board (Figure 3). Thyristor VS is connected in series with small bulb EL and connected to DC power supply through switch S. Note that the anode A is connected to the positive pole of the power supply, the cathode K is connected to the negative pole of the power supply, and the control pole G is connected to the positive pole of the 1.5V DC power supply through the button switch SB (the KP1 thyristor is used here, and if the KP5 thyristor is used, it should be connected to the positive pole of the 3V DC power supply). This connection between the thyristor and the power supply is called forward connection, that is, the positive voltage is applied to the anode and control pole of the thyristor. Turn on the power switch S, and the small bulb does not light, indicating that the thyristor is not connected; Press the button switch SB again, input a trigger voltage to the control pole, and the small bulb lights up, indicating that the thyristor is on. What inspiration does this demonstration experiment give us?
Thyristor
Thyristor
This experiment tells us that to make the thyristor turn on, one is to apply a forward voltage between its anode A and cathode K, and the other is to input a forward trigger voltage between its control electrode G and cathode K. After the thyristor is on, release the button switch, remove the trigger voltage, and still maintain the on-state.
| Other relevant models |
| 5SHX0360D0001 IGCT MODULE 38 MM/6KV, HL000384P0101, 3BHB004027R0101 |
| 5SHX0660F0001 3BHB003387R0101 GVC703AE01 3BHL00386P0101 |
| 5SHX0660F0002 3BHE022333R0101 |
| 5SHX06F6004 3BHB003387R0101/5SXE05-0151/3BHB003151P104 |
| 5SHX0845F0001 3BHL000385P0101 3BHB003387R0101 5SXE05-0151 |
| 5SHX1060H0001 3BHB003230R0101 3BHL000392P0101 |
| 5SHX1060H0003 3BHE024415R0101 3BHB020538R0001 GVC714A101 |
| 5SHX10H6004 |
| 5SHX1445H0001 3BHL000391P0101 |
| 5SHX14H4502 3BHB003230R0101 5SXE05-0152 3BHB003023P201 |
| 5SHX1960L0004 3BHL000390P0104 |
| 5SHX2645L0002 3HB012961R0001 |
| 5SHX2645L0004 3BHL000389P0104 |
| 5SHX2645L0006 3BHB012961R0002 |
| 5SHY3545L0002 3BHE009681R0101 CVC750BE101 |
| 5SHY3545L0003 3BHB004692R001 , GVC732AE01 336A4954ARP1 |
| 5SHY3545L0005 3BHB004692R0001 336A4954ARP2 GVC732AE01 |
| 5SHY3545L0009 3BHE009681R0101 3BHB013085R0001 GVC750BE101 |
| 5SHY3545L0010 3BHB013088R0001 3BHE009681R0101 GVC750BE101 |
| 5SHY3545L0014 |
| 5SHY3545L0016 3BHB020720R0002 |
| 5SHY35L4520 |
| 5SHY4045L0004 3BHB021400R0002 |
| 5SHY4045L0006 3BHB030310R0001 3BHE039203R0101 GVC736CE101 |
| 5SHY5045L0020 AC10272001R0101 5SXE10-0181 |
| 5SHY5055L0002 3BHE019719R0101 GVC736BE101 |
| 5SHX1060H0003 |
