505E Software Changes Covered in this Manual Revision
1.5466-316  PROGRAM MODE: Made all start modes default to false to ensure a customer programmed the unit. Also added an error check to ensure Rated Speed (when programmed as a gen set) was less than max gov.
2. SERVICE MODE: Changed the hold changes for Min Load to come from the Breaker Logic header’s Hold Changes input. Previously the hold changes
command was selected under the Speed Control Settings header.
3. SPEED SETPOINT RATES: Changed the minimum adjustment range for all speed setpoint rates to 0.01 (was 0.1).
4. AUX LIMITER or CONTROLLER: Added logic to ensure the inhibited status of Aux control when the input is failed. In addition, changed Aux re-enable logic such that when a failed aux input is restored there is no glitch to the speed LSS. Also changed breaker open logic to correct a Gen Opening Aux actuator output glitch.
5. 5466-316 AUX CONTROLLER: Changed the speed setpoint aux biasing logic to only allow the speed control limiting action (while in aux control) to be active when the speed setpoint reaches max gov. Prior to this fix the speed limiter could come into control during an extreme transient.
6. AUX DIRECT ENTERED SETPT: Changed Aux Entered setpoint to be reset/ stopped on a shutdown pulse rather than held disabled on a shutdown condition. This change allows the Aux Limiter function direct setpoint entry even when the unit is tripped.

7. AUX, CASC, and EXTR DROOP: Changed the droop feedback lag-tau tunable range from a max of 10 to a max of 1000.
8. DECOUPLED CASCADE CONTROL: Added a lag to the speed the speed setpoint is using during a utility tie breaker open setback. Also updated the logic used to reset the speed setpoint to minimize to bump experienced when Decoupled Casc is disabled. Changed logic to fix a problem where breaker opening while in the Cascade decoupled mode would cause the HP valve to close then open unexpectedly.
9. MODBUS: Changed the Gen and Tie Open alarms for Aux, Casc, and Remote to match the Modbus®
* listing—the software eventlatch inputs were reversed/backwards with the Modbus listing.
*—Modbus is a trademark of Modicon, Inc.
10. CONTROLLED STOP: Made the Controlled Stop abort if speed raise/lower
is selected or another control mode is selected. This can be tuned-out by
setting CNTRL_STOP.RL_STOP. IN_2=*false in the debug mode.

This manual (85018) describes the Woodward 505E Digital Governor for steam
turbines with controlled extraction and/or admission pressure control. English
versions are 5466-316, 9907-166, and 9907-167. The option charts below show
the differences between the part numbers. Volume 1 of this manual provides
installation instructions, describes the control, and explains the configuration
(programming) and operating procedures. Volume 2 includes notes on applying
the control to specific applications, Service mode information, and 505E
hardware specifications.
This manual does not contain instructions for the operation of the complete
turbine system. For turbine or plant operating instructions, contact the plantequipment manufacturer.
Manual 85017 describes the 505 Digital Governor for steam turbines without
extraction pressure control.

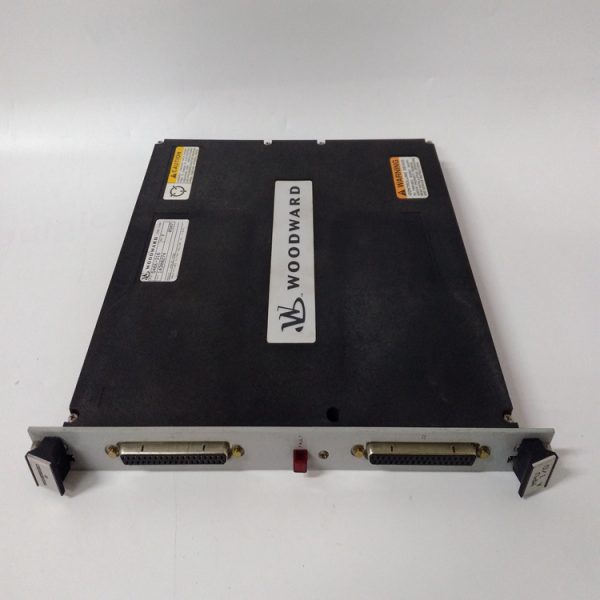

Part Number Options
Part Number Power
5466-316 HVAC (180–264 Vac)
9907-166 AC/DC (88–132 Vac) or (90–150 Vdc)
9907-167 LVDC (18–32 Vdc)
Optional
