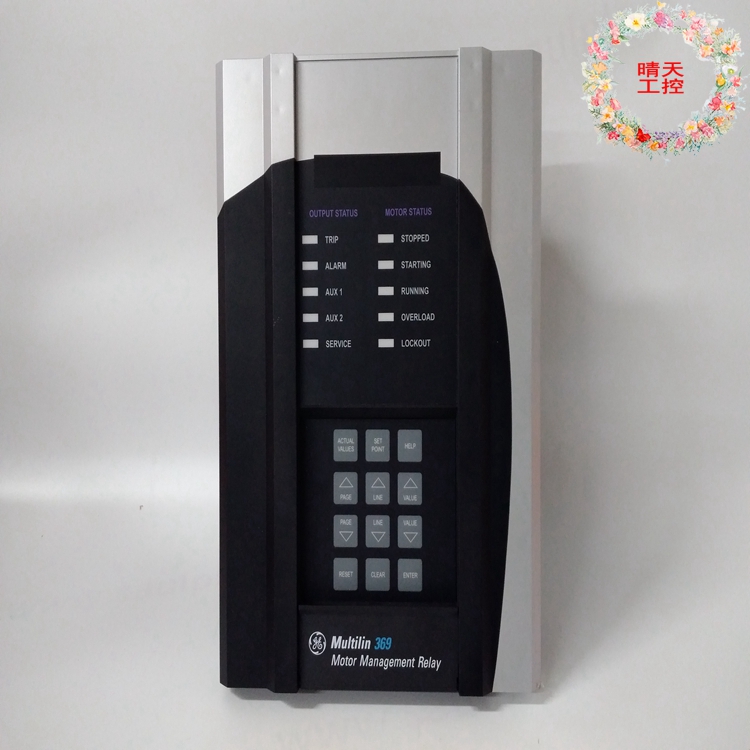

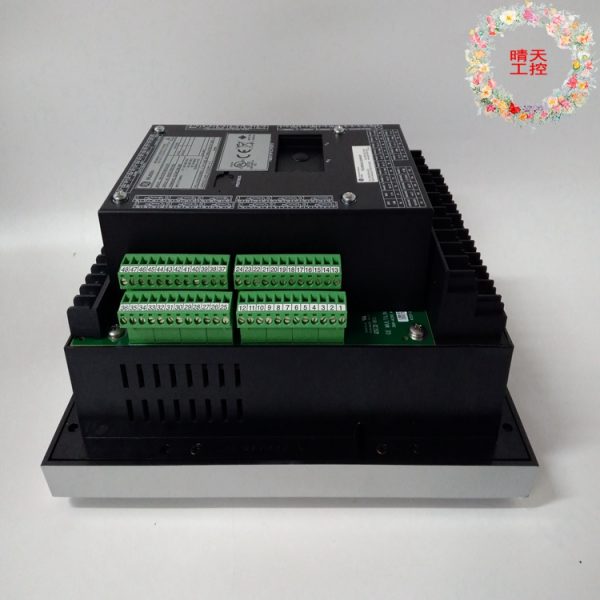

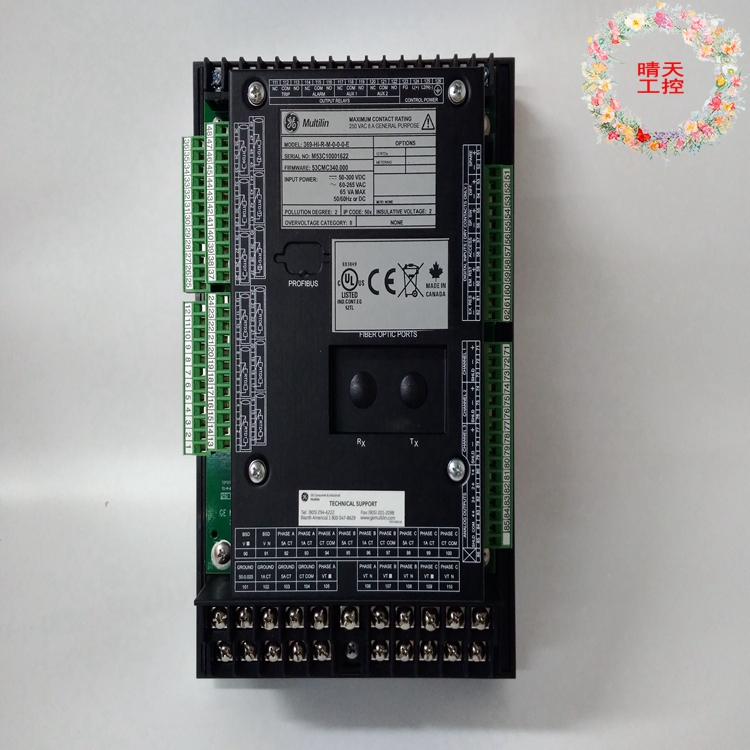

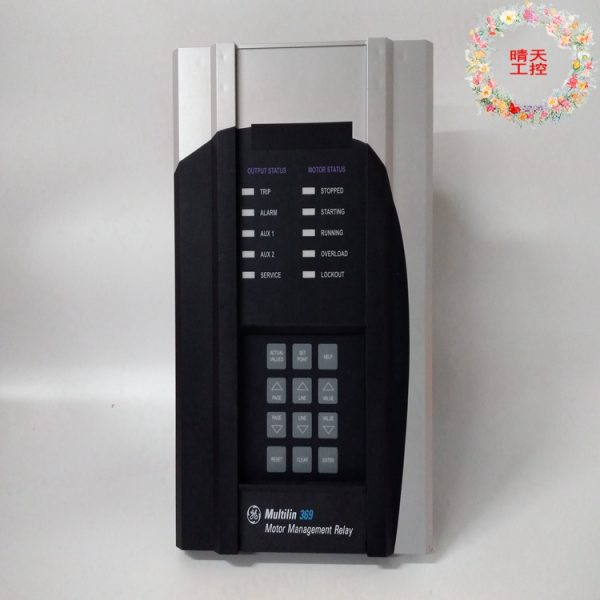

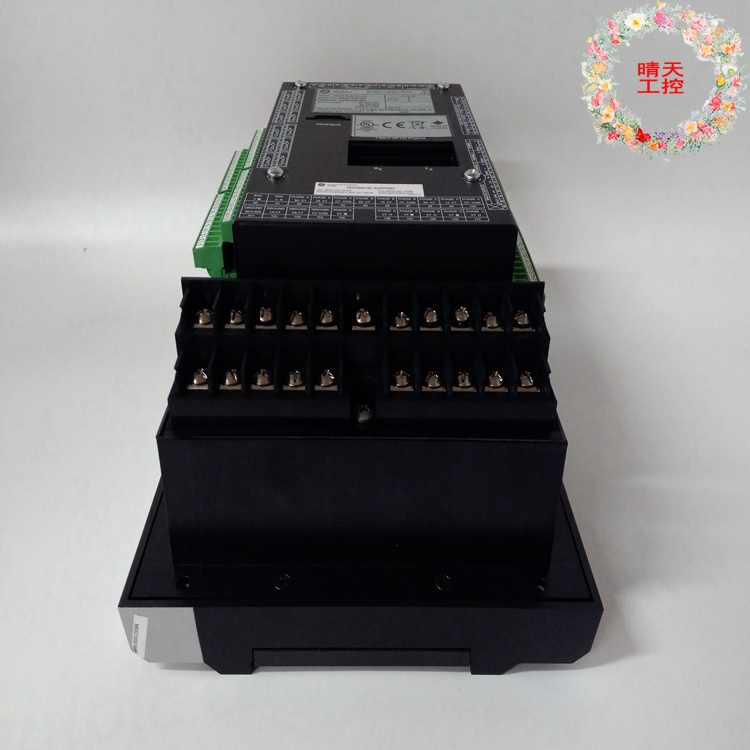

369-HI-0-0-0-0 GE motor management relay
Brand ABB Color Standard Application Industrial height 395mm rated current 560mA
Protection Level IP45 Suitable for motor power 76KW Application Site Power Industry BOM Number GJR2391500R1220 Power industry HIEE401782R0001 Part number 369-HI-0-0-0-0
Applicable pipe 2 Whether imported is weighing 6.88 kg can be sold nationwide
369-HI-0-0-0-0 GE motor management relay
The 369-HI-R-0-0-0-0-0-E is a motor protection relay designed to monitor, manage and protect medium AC motors and their accessory equipment. Part of the GE Multi-wire 369 series, the 369-HI-R-0-0-0-0-0-E is an adaptive system that “learns” motor requirements and provides many proactive steps and measures to protect system life and reduce associated costs. The metering function of the relay includes event reporting, waveform capture and startup data recording; All of these features provide critical insight into system performance and can warn of impending failures.
The multi-line 369-HI-R-0-0-0-0-0-E has a width of approximately 11 cm, a height of approximately 30 cm, and a length of approximately 21 cm. The 369-HI-R-0-0-0-0-E weighs 10 pounds inside the box and about 8 pounds outside the box. The device is installed in a demonstration metal carrying bag, which is extremely durable in addition to being flame retardant and corrosion resistant. The relay should be installed away from strong magnetic fields and high current conductors, otherwise it will be damaged over time.
The front end of the relay also includes an RS232 port for connecting computers running GE Multilin’s industry-leading software, EnerVista 369. Connecting such devices allows for faster modification of set points. Set points are configurable Settings that determine the behavior of relays and can be adjusted to the needs of a particular motor system. The Enervista 369 Motor Setup Auto-configurator makes it easy to configure the set values by using the motor nameplate and system information to generate the appropriate setup file. The user can then further customize the system by performing manual adjustments in the EnerVista program.
Frequently Asked Questions about 369-HI-R-0-0-0-0-E
369- High – R-0-0-0-0-0-E Has any optional features?
The Multi-wire GE 369-HI-R-0-0-0-0-E comes with enhanced diagnostic options. This option also provides an enhanced panel for the device. Enhancements also provide 369 Multilin with motor health reports, motor start data loggers, and more advanced event loggers. In addition, the 369-HI-R-0-0-0-0-E includes an additional 12 built-in RTDS compared to the base model.
What are the additional features of GE Multilin 369-HI-R-0-0-0-0-E motor management relays and which types of RTDS come with this option?
The additional 12 RTDS added to the R option of the basic 369 multi-wire motor management relay can be bearings, stators, or environments. The specific type selected can be selected by the software.
369-HI-R-0-0-0-0-E What type of motor is protected and monitored?
Ge Multiwire 369-HI-R-0-0-0-0-0-E provides management and protection for three-phase motors. The 369-HI-R-0-0-0-0-0-E is also able to monitor the mechanical systems of these motors in a unique way by monitoring specific motors using measurements of cooling rate, motor surge current, etc.
What are the optional functions of the 369 Multi-wire motor management relay?
Some optional features that may be included in the basic unit Multiwire digital motor management relay are undervoltage/overvoltage, reverse phase detection, power factor, reverse detection, and underpower. These optional features can be explained in the manual.
