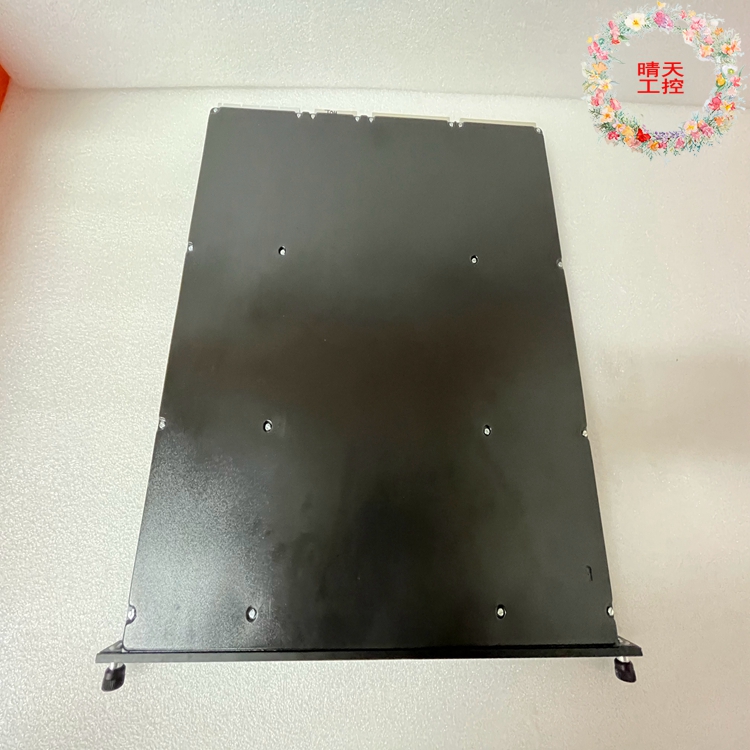

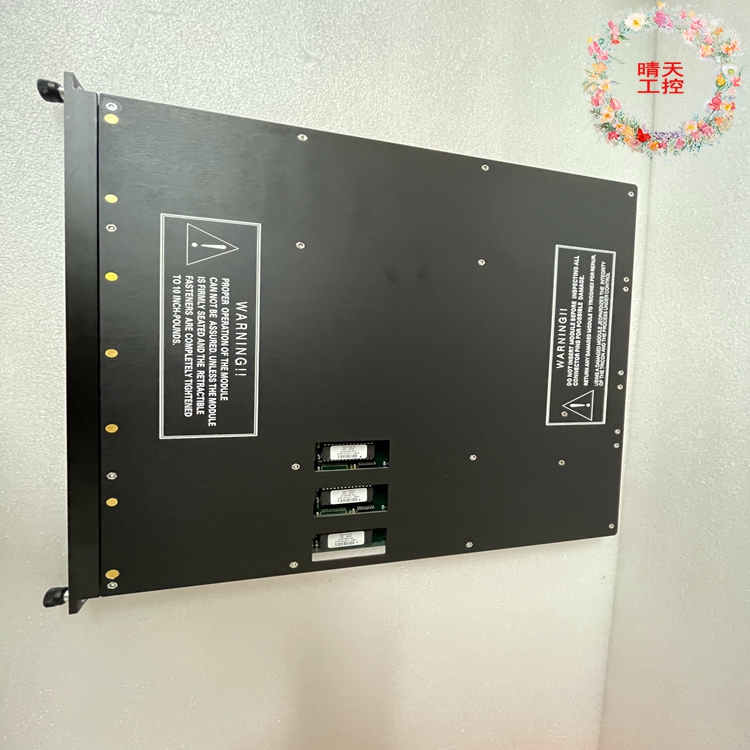

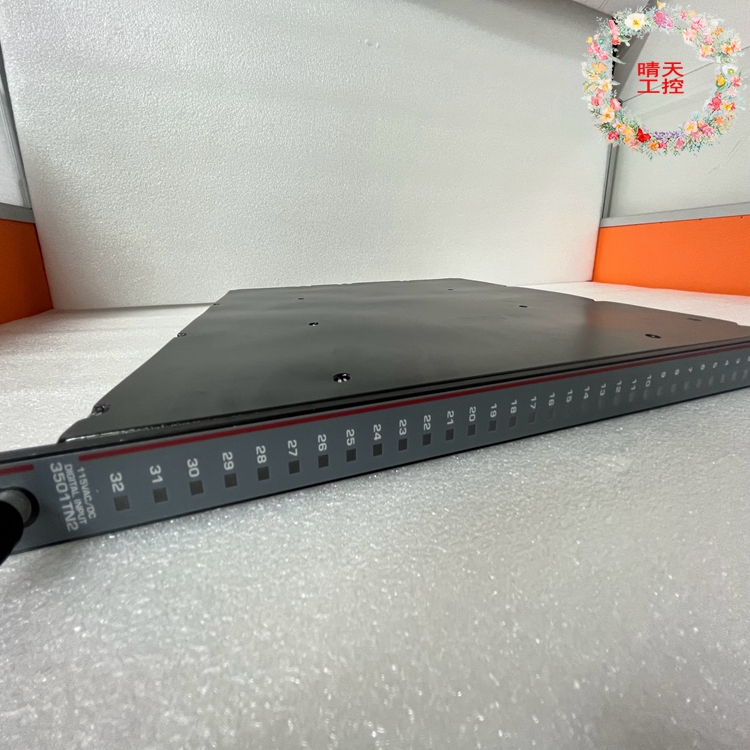

3501TN2 TRICONEX Invensys control module
The brand TRICONEX color standard applies industrial height 319mm rated current 431mA
Protection Level IP45 Suitable for motor power 113KW Application Site Power Industry Material Code GJR2391500R1220 Power industry HIEE401782R0001 Part No. 3501TN2
Applicable pipe 2 Whether imported is weighing 3.65 kg can be sold nationwide
3501TN2 TRICONEX Invensys control module
Model 3700A, 3703E, 3704E, 3720 and 3721 analog input modules provide 6% over-the-range measurement capability. The 3703E offers open input detection and can be configured as high or low in the TriStation 1131. If the open input (< 0 VDC) exceeds the lower limit of the range, the main processor receives the integer value – 32767. If the open input (>5 VDC or 10 VDC) exceeds the range limit, the main processor receives the integer value +32767.
Models 3720 and 3721 can be configured with standard (12-bit) resolution or high (14-bit) resolution in TriStation 1131. In high resolution, the 3721 can be configured with unipolar (0 to 5 VDC) or bipolar (-5 to +5 VDC) inputs in the TriStation 1131. Each analog input module provides complete, continuous diagnostics for each channel. Any diagnostic fault on any channel activates the module’s fault indicator, which in turn activates the chassis alarm signal. The fault indicator indicates a channel fault, not a module fault.
The module is guaranteed to function in the event of a single failure, and may continue to function in the event of some multiple failures. Analog input modules include a hot standby function that allows online replacement of failed modules. As with all I/O modules, the analog input module requires a separate field terminal component that has a cable interface to the Tricon controller backplane. Each module is mechanically keyed to prevent improper installation in the configured chassis.
