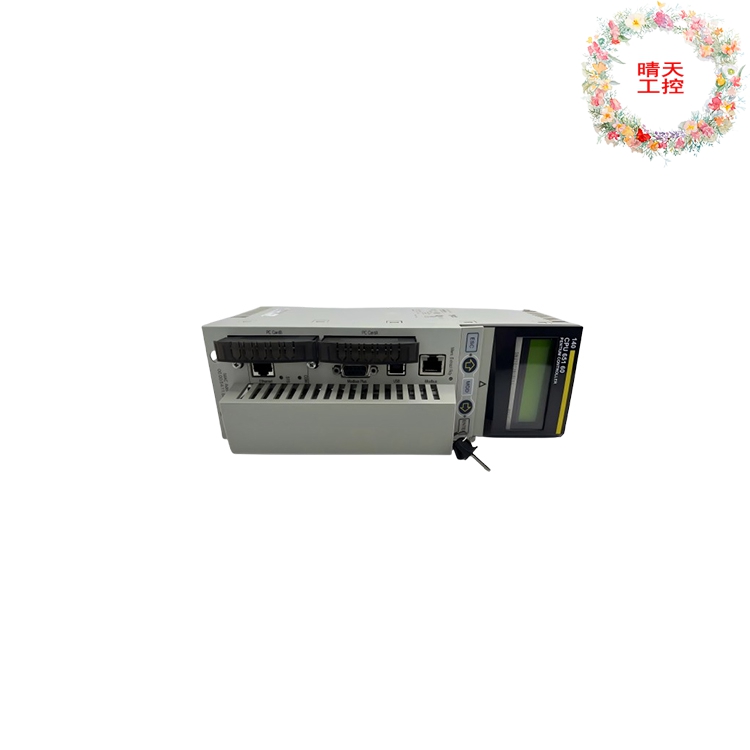

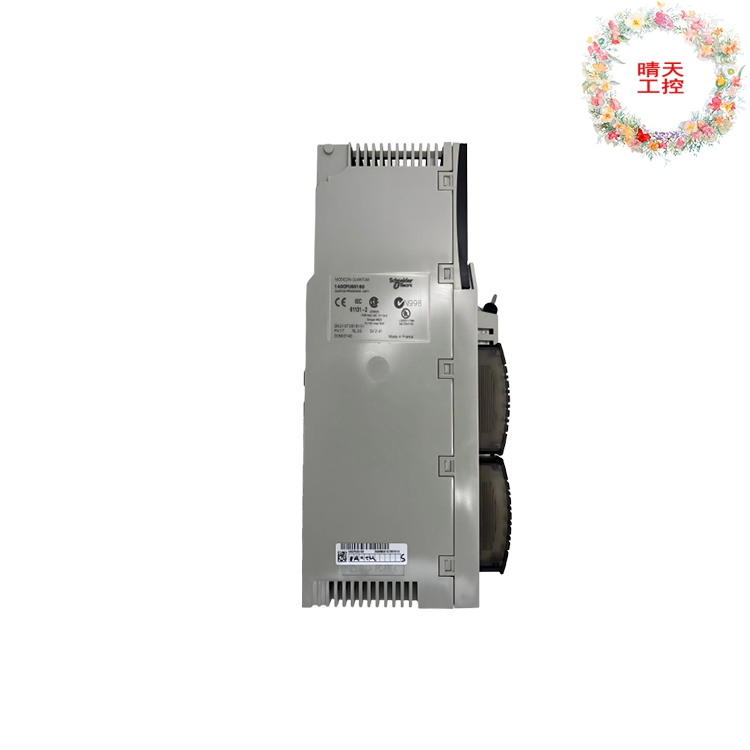

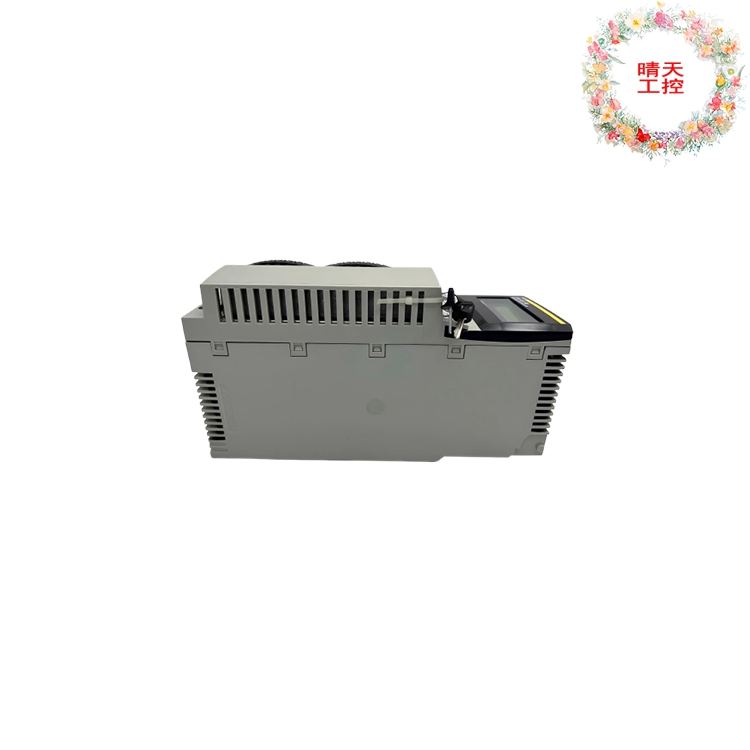

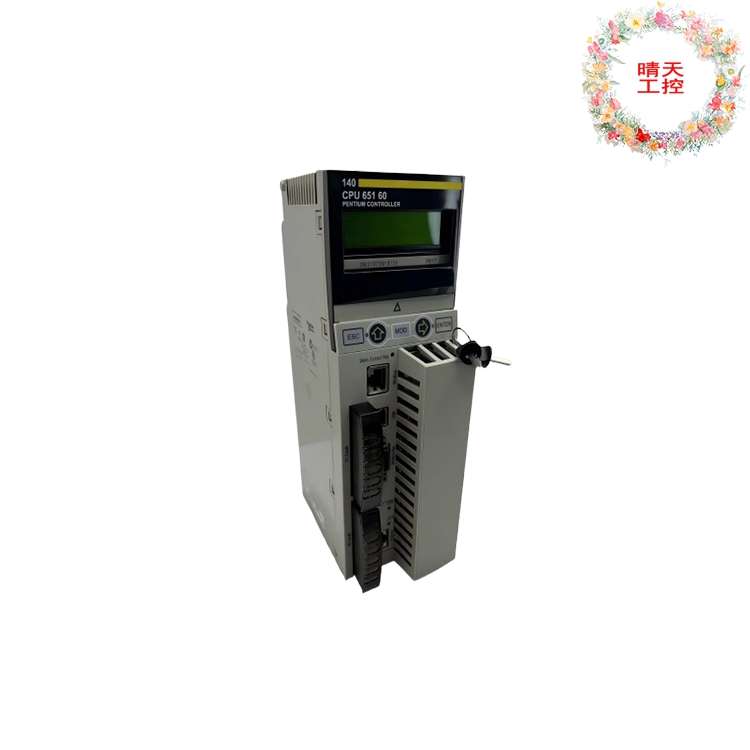

140CPU65160 Unity processor Modicon Quantum – 3072 kB – 266 MHz

140CPU65160 Unity processor Modicon Quantum – 3072 kB – 266 MHz

Complementary
Mode of transmission :Multi mode
Clock frequency :266 MHz
Number of slots:10
16
2
4
6
Number of racks :2 – local rack(s)
Number of distributed I/O station :63 station(s) – 1 rack(s) – 3 Modbus Plus network(s)
Number of remote I/O station:31 – 2 S908 remote I/O rack(s)

31 – 2 ethernet Quantum remote I/O rack(s)
31 – 2 S908 remote I/O rack(s)
Discrete I/O number:0 – local – forbidden in Hot Standby application
Unlimited (31 drops of 28 slots max) – ethernet remote I/O
8000 inputs, 8000 outputs – distributed – per network Modbus Plus
31744 inputs, 31744 outputs – remote
Analogue I/O number:0 – local – forbidden in Hot Standby application
1984 inputs,1984 outputs – remote
Unlimited (31 drops of 28 slots max) – ethernet remote I/O
500 inputs, 500 outputs – distributed – per network Modbus Plus
Application specific I/O:Accurate time stamping
Counter
High-speed interrupt inputs

Serial link
Communication service:Ethernet router
Number of optional modules:6 ( Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/Max)
Maximum number of connections:1 ( Modbus) – RS232/485 Modbus/ASCII
6 ( Profibus DP) – local
6 ( Modbus Plus) – local
6 ( Ethernet TCP/IP) – local
4 ( AS-Interface) – remote
2 ( AS-Interface) – distributed
1 ( USB)
Integrated connection type: 1 optic fibre with Hot Standby protocol
1 USB with
1 Modbus with
1 Modbus Plus with
Checks Hot standby
Process control

General scenario：

Memory description Expandable 7168 kB – program with PCMCIA card
Expandable 8 MB – file storage with PCMCIA card
Internal RAM 1024 kB – 512 kB for data
Switch function Key switch memory port on/off
Application structure 1 periodic fast task – forbidden in Hot Standby application
128 I/O interrupt tasks – forbidden in Hot Standby application
128 interrupt tasks – forbidden in Hot Standby application
32 timer interrupt tasks – forbidden in Hot Standby application
4 auxiliary tasks – forbidden in Hot Standby application
1 cyclic/periodic master task –
Number of instructions per ms 10.28 Kinst/ms 100 % Boolean
10.07 Kinst/ms 65 % Boolean and 35 % numerical
System overhead 0.2 Ms for fast task
1 Ms for master task
Bus current requirement 2500 MA
Local signalling 1 LED (green) for Ethernet activity (COM)
1 LED (red) for Ethernet collision
Electrical connection 1 female connector, connector type: SUB-D 9 for connecting to the Modbus Plus
network
1 connector, connector type: RJ45 for connecting Modbus bus
1 connector, connector type: MT-RJ (multimode fiber optic) for interconnecting
primary and secondary PLCs up to 4 km
Environment
Product certifications CE[RETURN]UL[RETURN]Misc (Marine)[RETURN]CSA[RETURN]GOST
Standards HazLoc
Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Height 11.0 Cm
Package 1 Width 19.0 Cm
Package 1 Length 32.5 Cm
Package 1 Weight 1.447 Kg
